Product features

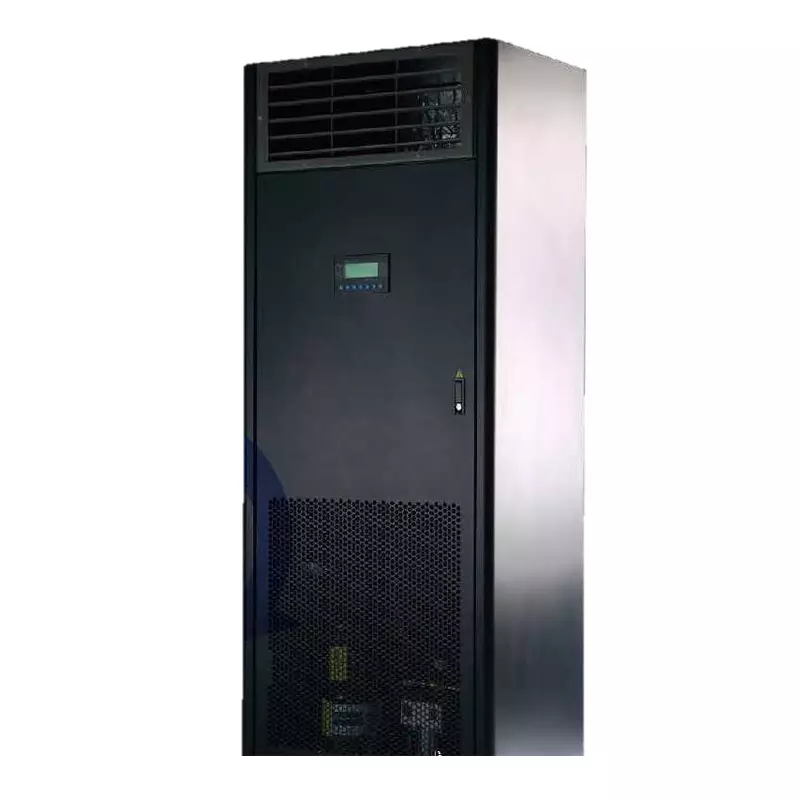

Wind-cooled type, with cooling capacities ranging from 5KW to 13KW. Two cabinet sizes. Front grille for air intake, horizontal air hood for air supply.
Small in size, saving floor space.
Frame structure, outer plates resistant to corrosion and rust. Strong corrosion resistance, good sound insulation and sealing effect.
Large frontal wind area for the cooling coil. High specific heat ratio, low air resistance.
Fully enclosed vortex-type compressor, long service life, low noise, high efficiency. Uses EC fans, efficient and low noise.
The air filter can be removed and installed from the front of the cabinet, making replacement and cleaning convenient. Main refrigeration components are selected from internationally renowned brands to ensure reliable and safe operation of the unit.
Automatically controlled by the condensing pressure to start or stop the outdoor condensing fan and adjust the speed continuously.
Controlled by a microcomputer controller. It has multiple adjustable control parameters and automatic alarm display functions, with sensitive response, complete functions, and simple operation. Large-screen liquid crystal display.
Has automatic fault diagnosis, fault display, and light alarm functions. Can achieve remote monitoring and centralized monitoring.
|
Performance majority
|
|
Unit type Product model
|
Air-cooled type
|
|
产品型号
|
CS 5AⅠS
|
CS 8AⅠS
|
CS 12AⅠS
|
|
Refrigeration capacity (kW)
|
5.07
|
8.03
|
13.27
|
|
Visible cooling capacity (kW)
|
4.61
|
7.41
|
12.54
|
|
Air volume (m3/h)
|
1700
|
2450
|
3800
|
|
Heating capacity (kW)
|
3
|
3
|
3
|
|
Humidification capacity (kg/h)
|
3
|
3
|
3
|
|
Structural parameters
|
|
Dimensions (mm)
|
Wide665
|
Wide765
|
|
Thick460
|
Thick560
|
|
High1940
|
|
Weight (kg)
|
108
|
125
|
165
|
|
Note:
1) Standard operating condition: Indoor return air dry bulb temperature 24℃, wet bulb temperature 17℃, relative humidity 50%, outdoor environment dry bulb temperature 35℃, and the static pressure outside the machine can be adjusted within the range of 10 to 50 Pa.
2) Select the outdoor unit specifications based on the outdoor environmental temperature. Choose either the standard outdoor unit or the compact outdoor unit according to the required area of the site.
3) The above table only presents a portion of the parameters. For more detailed information, please contact CTDG.
|
