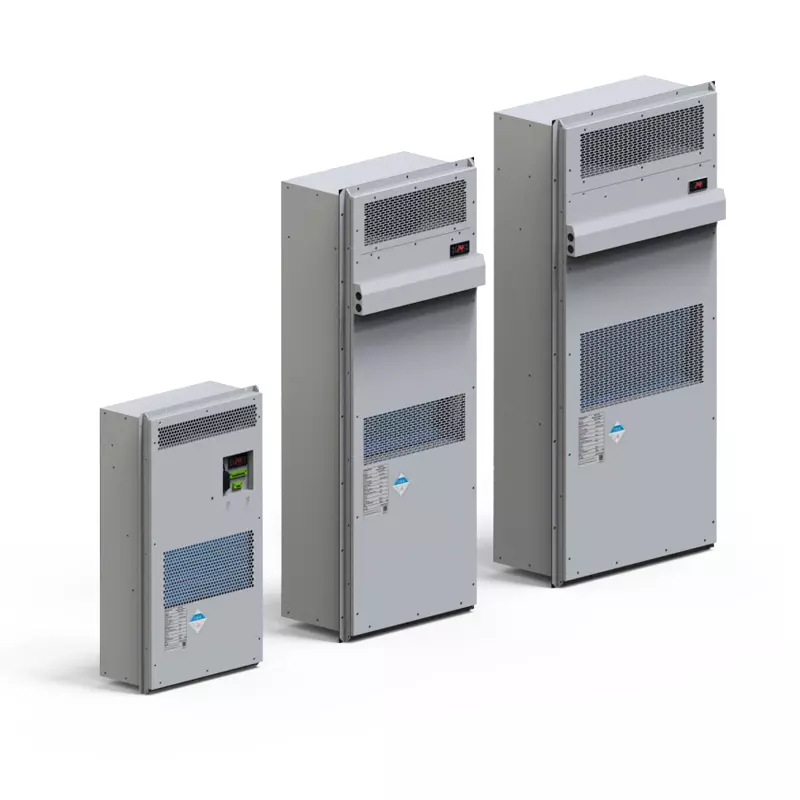

The upper air outlet structure design ensures a long air delivery distance, which is more compatible with the duct design;
High air volume, improving the temperature uniformity of the battery environment;
Standardized dehumidification function;
Standardized RS485 interface for remote measurement, remote signaling, and remote adjustment;
Optional internal fan speed control for greater energy efficiency;
Optional C5 high corrosion resistance configuration;
Optional explosion-proof configuration;
|
型号/Model
|
HDC020ASE
|
HDC030ADE
|
HDC040ADE
|
HDC050ADE
|
HDC075ADE
|
HDC125AE
|
HDC200AE
|
|
电源/Power Supply
|
220VAC±15% 50Hz/60Hz
|
220VAC±15% 50Hz/60Hz
|
220VAC±15% 50Hz/60Hz
|
220VAC±15% 50Hz/60Hz
|
220VAC±15% 50Hz
|
3~,380-415VAC,50Hz
|
3~,380-415VAC,50Hz
|
|
制冷量/Cooling Capacity
|
2000W
|
3000W
|
4000W
|
5000W
|
7500W
|
12500W
|
20000W
|
|
功耗/Power Consumption
|
840W
|
1430W
|
1500W
|
2000W
|
2700W
|
4800W
|
8500W
|
|
安装方式/Mounting Method 外形尺寸/Dimensions (mm,H*W*D)
|
半嵌入/Semi-embedded Mounting 833x483x216
|
半嵌入/Semi-embedded Mounting 1350x550x250(含法兰)
|
半嵌入/Semi-embedded Mounting 1380x593x300(含法兰)
|
半嵌入/Semi-embedded Mounting 1400x670x300(含法兰)
|
半嵌入/Semi-embedded Mounting 1350x650x320
|
半嵌入/Semi-embedded Mounting 1930x852x425(含法兰)
|
侧装 /Side Mounting 2100x890x703
|
|
IP等级/IP Grade
|
IP55
|
IP55
|
IP55
|
IP55
|
IP55
|
IP55
|
IP55
|
|
制冷剂/Refrigerant
|
R134a
|
R134a
|
R134a
|
R134a
|
R410A
|
R410A
|
R410A
|
|
净重/Net Weight
|
37kg
|
66kg
|
73kg
|
82kg
|
75kg
|
170kg
|
200kg
|
|
表面处理/Surface Treatment
|
RAL7035
|
RAL7035
|
RAL7035
|
RAL7035
|
RAL7035
|
RAL7035
|
RAL7035
|
