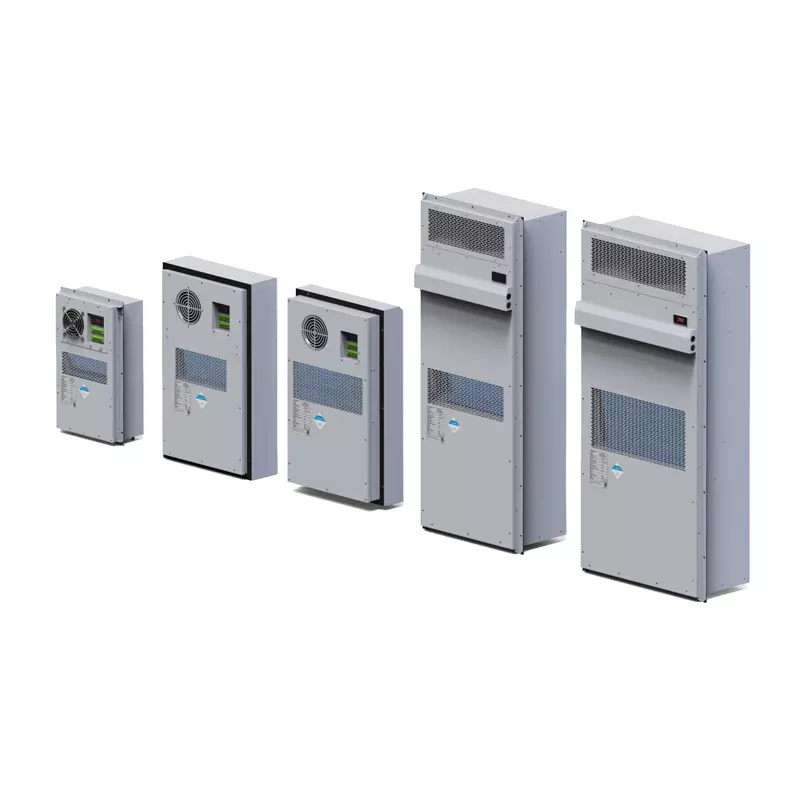

Outdoor air-cooled air conditioner for the power industry

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Multiple automatic protections and comprehensive fault self-diagnosis – ensuring safe operation and quick troubleshooting.
Exquisite craftsmanship and high-quality internationally renowned brand components – delivering superior stability and long-term reliability.
Designed for T3 high-temperature operating conditions – using R134a eco-friendly refrigerant.
Standard RS485 communication interface – enabling remote measurement, remote signaling, and remote adjustment (telemetry, telesignaling, telecommand) for convenient remote monitoring and control.
LED digital display – with field-adjustable parameters for on-site configuration.
Optional heating function and optional door access control – flexible to meet diverse application needs.
Optional dehumidification function – available upon request.
Dry contact alarm output – selectable as normally open (NO) or normally closed (NC).
Built-in condensate evaporator – eliminating the need for external drainage.

型号/Model	HDC006AD	HDC010AD	HDC015AD	HDC020AD	HDC030AD	HDC050AD
电源/Power Supply	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz
制冷量/Cooling Capacity	600W @L35/L35	1000W @L35/L35	1500W @L35/L35	2000W @L35/L35	3000W @L35/L35	5000W @L35/L35
功耗/Power Consumption	260W @L35/L35	440W @L35/L35	650W @L35/L35	870W @L35/L35	1430W @L35/L35	2000W @L35/L35
安装方式/Mounting Method外形尺寸/Dimensions(mm,HWD)	半嵌入/Semi-embedded Mounting580x350x175(含法兰)	半嵌入/Semi-embedded Mounting795x495x195	半嵌入/Semi-embedded Mounting795x495x195	半嵌入/Semi-embedded Mounting795x495x195	半嵌入/Semi-embedded Mounting1350x550x300(含法兰)	半嵌入/Semi-embedded Mounting1400x670x300(含法兰)
安装方式/Mounting Method外形尺寸/Dimensions(mm,HWD)	侧装 /Side Mounting550x320x175	侧装 /Side Mounting795x495x195	侧装 /Side Mounting795x495x195	侧装 /Side Mounting795x495x195	/	/
IP等级/IP Grade	IP55	IP55	IP55	IP55	IP55	IP55
制冷剂/Refrigerant	R134a	R134a	R134a	R134a	R134a	R134a
净重/Net Weight	15kg	30kg	39kg	41kg	50kg	82kg
表面处理/Surface Treatment	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035
