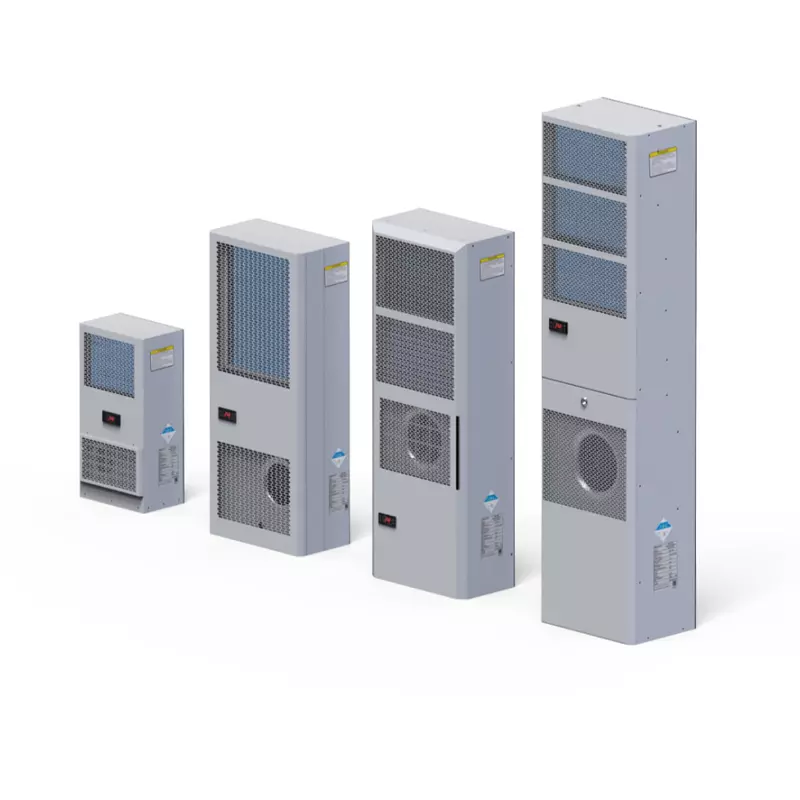

Indoor general-purpose industrial air-cooled air conditioner

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Multiple automatic protections and comprehensive fault self-diagnosis – ensuring safe operation and quick troubleshooting.
Exquisite craftsmanship and high-quality internationally renowned brand components – delivering superior stability and long-term reliability.
Designed for T3 high-temperature operating conditions – using R134a eco-friendly refrigerant.
Standard RS485 communication interface – enabling remote measurement, remote signaling, and remote adjustment (telemetry, telesignaling, telecommand) for convenient remote monitoring and control.
LED digital display – with field-adjustable parameters for on-site configuration.
Optional heating function and optional door access control – flexible to meet diverse application needs.
Optional dehumidification function – available upon request.
Dry contact alarm output – selectable as normally open (NO) or normally closed (NC).
Built-in condensate evaporator – eliminating the need for external drainage.

型号/Model	HDC003AN	HDC005AN	HDC008AN	HDC010AN	HDC015AN	HDC020AN	HDC025AN	HDC030AN	HDC040AN
电源/Power Supply	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz
制冷量/Cooling Capacity	300W @L35/L35	500W @L35/L35	800W @L35/L35	1000W @L35/L35	1500W @L35/L35	2000W @L35/L35	2500W@L35/L35	3000W @L35/L35	4000W @L35/L35
功耗/Power Consumption	180W @L35/L35	210W @L35/L35	345W @L35/L35	500W @L35/L35	650W @L35/L35	890W @L35/L35	1030W@L35/L35	1450W @L35/L35	1760W @L35/L35
安装方式/Mounting Method外形尺寸/Dimensions(mm,HWD)	侧装 /Side Mounting550x280x170	侧装 /Side Mounting550x280x170	侧装 /Side Mounting580x371x200	侧装 /Side Mounting950x400x212	侧装 /Side Mounting950x400x212	侧装 /Side Mounting1110x406x220	侧装 /Side Mounting1110x406x220	侧装 /Side Mounting1580x400x273	侧装 /Side Mounting1580x400x273
IP等级/IP Grade	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
制冷剂/Refrigerant	R134a	R134a	R134a	R134a	R134a	R134a	R134a	R134a	R134a
净重/Net Weight	14kg	15kg	20kg	34kg	36kg	35kg	35kg	55kg	55kg
表面处理/Surface Treatment	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035
