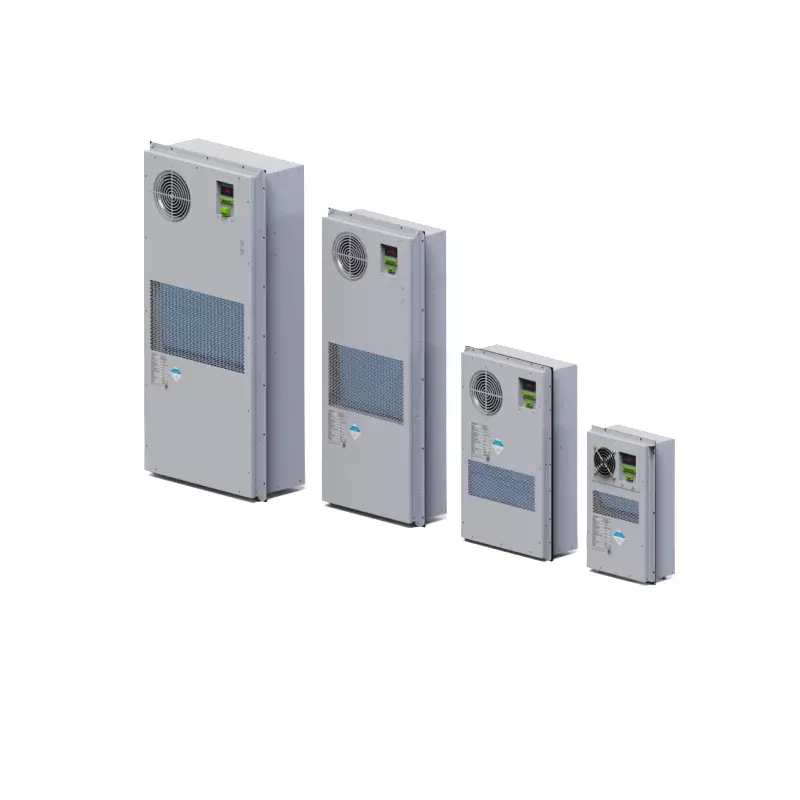

Outdoor general-purpose industrial air-cooled air conditioner

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Multiple automatic protections and comprehensive fault self-diagnosis – ensuring safe operation and quick troubleshooting.
Exquisite craftsmanship and high-quality internationally renowned brand components – delivering superior stability and long-term reliability.
Designed for T3 high-temperature operating conditions – using R134a eco-friendly refrigerant.
Standard RS485 communication interface – enabling remote measurement, remote signaling, and remote adjustment (telemetry, telesignaling, telecommand) for convenient remote monitoring and control.
LED digital display – with field-adjustable parameters for on-site configuration.
Optional heating function and optional door access control – flexible to meet diverse application needs.
Optional dehumidification function – available upon request.
Dry contact alarm output – selectable as normally open (NO) or normally closed (NC).
Built-in condensate evaporator – eliminating the need for external drainage.

型号/Model	HDC004AS	HDC006AS	HDC008AS	HDC008AS（窄款）	HDC010AS	HDC015AS	HDC020AS	HDC030AS	HDC050AS
电源/Power Supply	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz	220VAC±15% 50Hz/60Hz
制冷量/Cooling Capacity	400W @L35/L35	600W @L35/L35	800W @L35/L35	800W @L35/L35	1000W @L35/L35	1500W @L35/L35	2000W @L35/L35	3000W @L35/L35	5000W @L35/L35
功耗/Power Consumption	190W @L35/L35	260W @L35/L35	440W @L35/L35	340W @L35/L35	440W @L35/L35	650W @L35/L35	870W @L35/L35	1430W @L35/L35	2000W @L35/L35
安装方式/Mounting Method外形尺寸/Dimensions(mm,HWD)	半嵌入/Semi-embedded Mounting480x355x178(含法兰)	半嵌入/Semi-embedded Mounting580x350x175(含法兰)	半嵌入/Semi-embedded Mounting787x467x130(含法兰)	/	半嵌入/Semi-embedded Mounting780x480x200(含法兰)	半嵌入/Semi-embedded Mounting780x480x200(含法兰)	半嵌入/Semi-embedded Mounting780x480x200(含法兰)	半嵌入/Semi-embedded Mounting1200x535x225(含法兰)	半嵌入/Semi-embedded Mounting1350x650x300(含法兰)
安装方式/Mounting Method外形尺寸/Dimensions(mm,HWD)	/	侧装 /Side Mounting550x320x175	/	侧装 /Side Mounting580x371x200	侧装 /Side Mounting750x450x200	侧装 /Side Mounting750x450x200	侧装 /Side Mounting750x450x200	/	/
IP等级/IP Grade	IP55	IP55	IP55	IP55	IP55	IP55	IP55	IP55	IP55
制冷剂/Refrigerant	R134a	R134a	R134a	R134a	R134a	R134a	R134a	R134a	R134a
净重/Net Weight	14kg	15kg	21.5kg	20kg	30kg	32kg	34kg	50kg	100kg
表面处理/Surface Treatment	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035	RAL7035
