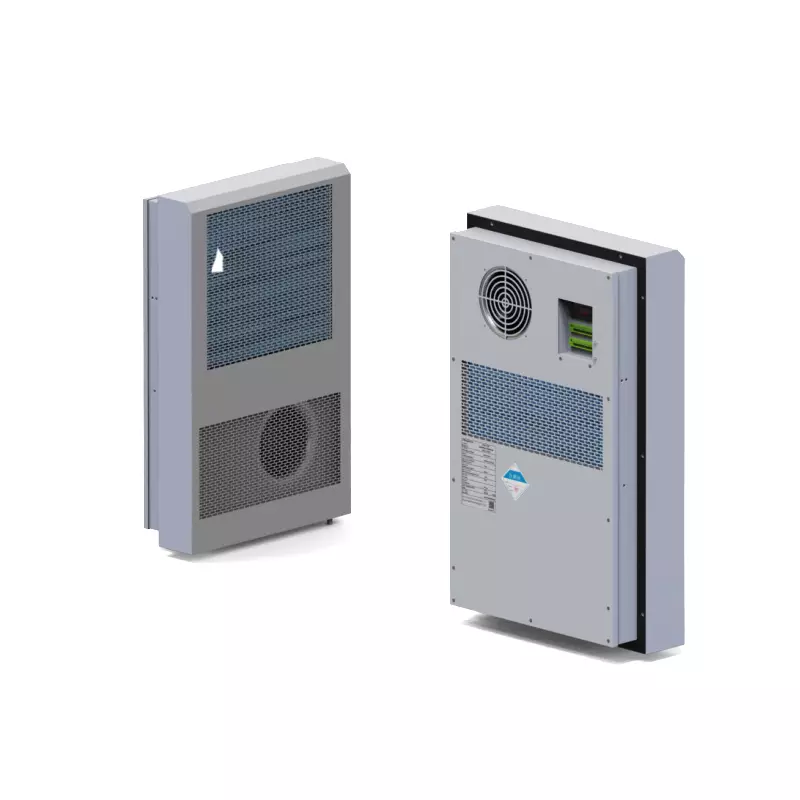

This product is widely used in applications such as battery cabinets, electrical cabinets, and industrial control cabinets that require constant temperature control;
*Multiple automatic protection and comprehensive fault self-diagnosis;
*Exquisite craftsmanship and high-quality international brand components ensure the product is more stable and reliable;
*R134a environmentally friendly refrigerant;
*Standard RS485 interface for remote measurement, remote signaling, and remote adjustment;
*LED digital display, on-site parameters can be set;
*Dry contact alarm output, with options for normally open or normally closed;
*Refrigeration capacity output PID adjustment, temperature control accuracy ≤ ±0.5℃
|
型号/Model
|
HDC010AJ
|
HDC015AJ
|
HDC020AJ
|
|
电源/Power Supply
|
220VAC±15% 50Hz/60Hz
|
220VAC±15% 50Hz/60Hz
|
220VAC±15% 50Hz/60Hz
|
|
制冷量/Cooling Capacity
|
1000W @L35/L35
|
1500W @L35/L35
|
2000W @L35/L35
|
|
功耗/Power Consumption
|
450W @L35/L35
|
650W @L35/L35
|
870W @L35/L35
|
|
安装方式/Mounting Method 外形尺寸/Dimensions (mm,H*W*D)
|
半嵌入/Semi-embedded Mounting 795x495x175
|
半嵌入/Semi-embedded Mounting 795x495x175
|
半嵌入/Semi-embedded Mounting 795x495x175
|
|
IP等级/IP Grade
|
IP55
|
IP55
|
IP55
|
|
制冷剂/Refrigerant
|
R134a
|
R134a
|
R134a
|
|
净重/Net Weight
|
38kg
|
40kg
|
42kg
|
|
表面处理/Surface Treatment
|
RAL7035
|
RAL7035
|
RAL7035
|
