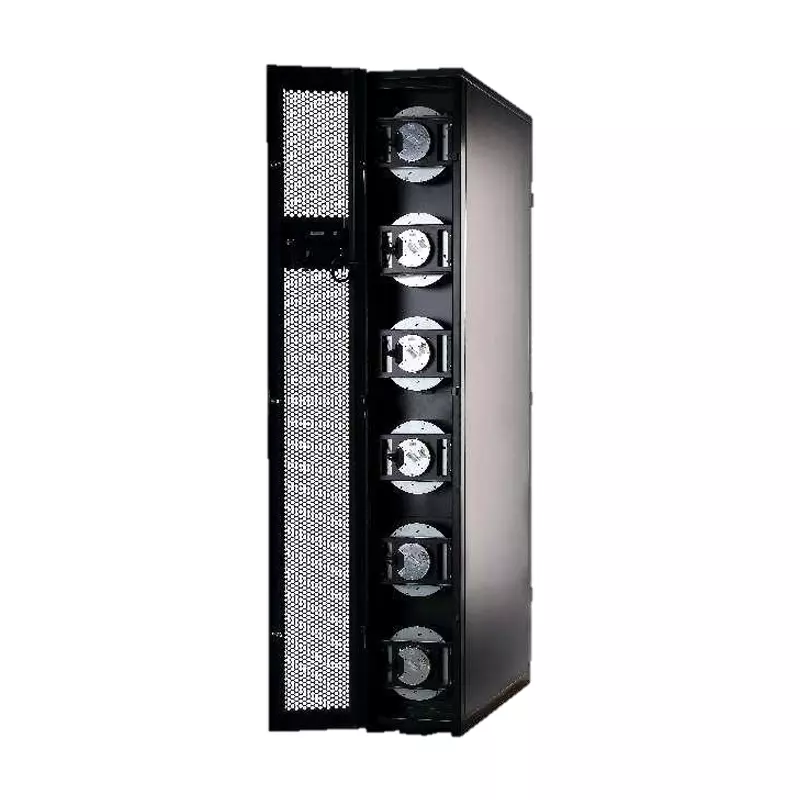

The efficient combination of vortex variable-frequency compressor and EC fan
Hotspot Management
The wind speed and volume can be adjusted conveniently. The residual pressure outside the machine can reach above 50 Pa, meeting higher air supply requirements.
Additional cooling is provided when necessary.
Direct expansion system with variable frequency technology.
Wind volume adjustment according to the actual heat load.
Characteristics
Vortex variable-frequency compressor: Environmentally friendly and energy-saving
High-efficiency EC fan: Noise level is 4-5 decibels lower, and electricity consumption is reduced by 15%
The controller uses 4 sensors to collect temperature data for calculation, solving the problem of temperature stratification in the rack
Easy scalability: It can be combined with multiple mainstream racks to dynamically match the heat load of servers. Standardized design and easy expansion capabilities
|
Performance parameters
|
|
Unit type Product model
|
Air-cooled fixed-frequency
|
Chilled water type
|
|
产品型号
|
CR 25A
|
CR 35A
|
CR 40A
|
CR 50A
|
CR25C
|
CR30C
|
CR40C
|
CR50C
|
|
Refrigeration capacity (kW)
|
25.2
|
35.6
|
40.0
|
50.0
|
25.0
|
30.4
|
40.0
|
50.0
|
|
Visible cooling capacity (kW)
|
25.2
|
35.6
|
40.0
|
50.0
|
25.0
|
30.4
|
40.0
|
50.0
|
| Air volume (m3/h) |
5000
|
8650
|
9800
|
10500
|
5000
|
6000
|
9000
|
10500
|
|
Unit type
|
Air-cooled variable-frequency
|
|
|
Product model
|
CR 25XR2Z
|
CR 30AR2Z
|
CR 40AR2Z
|
CR 50AR2Z
|
|
100% load cooling capacity (kW)
|
25.2
|
30.3
|
40.0
|
50.0
|
|
100% load cooling capacity (kW)
|
25.2
|
30.3
|
40.0
|
50.0
|
|
Air volume (m3/h)
|
5000
|
6000
|
9800
|
10500
|
|
Optional accessories
|
|
|
|
Heating capacity (kW)
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
|
Humidification capacity (kg/h)
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
3
|
|
Mostly structural
|
|
|
|
Overall dimensions (mm)
|
Wide300
|
Wide600
|
Wide300
|
Wide600
|
|
Thick1200
|
Thick1200
|
|
High2000（2200）
|
High2000（2200）
|
|
Weight（kg）
|
225
|
260
|
270
|
318
|
150
|
223
|
245
|
275
|
|
Note:
1) Standard condition for air-cooled type: Indoor return air dry bulb temperature 35℃, wet bulb temperature 21℃, relative humidity 27%, outdoor environment dry bulb temperature 35℃, outdoor static pressure adjustable from 10 to 75 Pa.
2) Standard condition for chilled water type: Indoor return air dry bulb temperature 35℃, wet bulb temperature 21℃; chilled water inlet and outlet water temperature 15/21℃, outdoor static pressure adjustable from 10 to 75 Pa.
3) The unit can be equipped with an intelligent dual-cycle fluorine pump system as per requirements.
4) The outdoor unit specification can be matched according to the outdoor environment temperature, and the ordinary outdoor unit or compact outdoor unit can be selected according to the site area requirements.
5) High water temperature type chilled water units are available. For more parameter information, please contact CTDG.
|
