Product features
1. This system can be applied to both water-cooled and oil-cooled gun lines for heat dissipation. It can operate normally at a temperature of 50 degrees Celsius and with a thermal power consumption of 5KW.
2. The product is small in size and light in weight, with strong scalability. It can be assembled in any desired manner according to the customer's structure.
3. The maximum system flow rate can reach 5 liters per minute (when the pressure is less than 6.5 Bar), suitable for single-gun use with 1000A, or for dual-gun use with 600A in parallel (the total power during operation of both guns does not exceed 1000A).
4. Equipped with a precise control system, it uses the PWM duty cycle method to precisely adjust the speed of the water pump and the fan, in order to meet the operation requirements under different working conditions.
5. Closed-loop feedback system can provide real-time feedback on the total system pressure, system inlet temperature, system outlet temperature, low liquid level alarm, pump failure alarm, and fan speed signal during system operation.
6. IP55 water and dust protection function + WF1 outdoor anti-corrosion grade

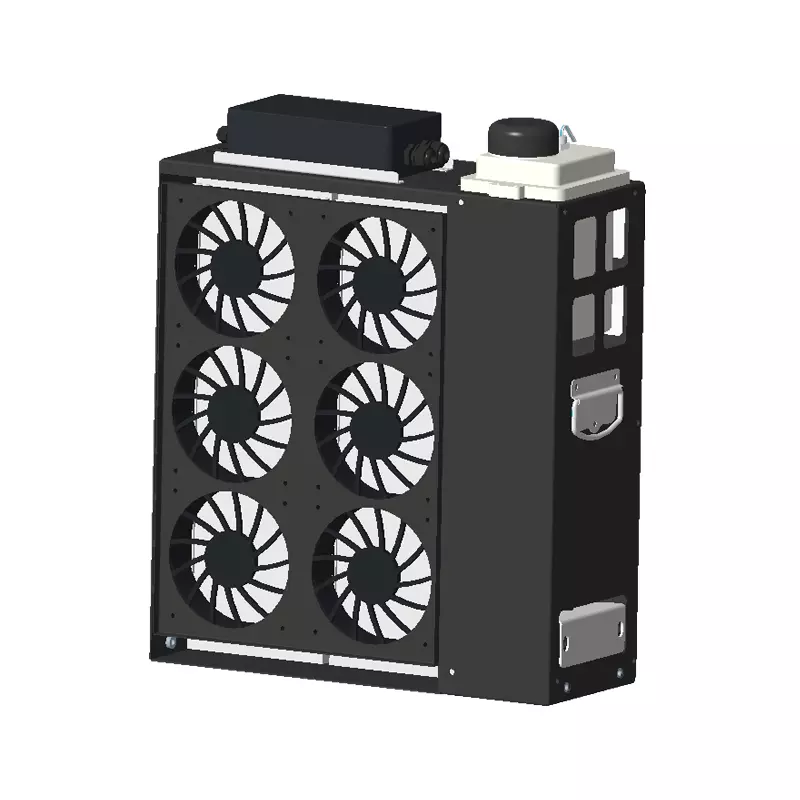

4.5 - 5 KW standard type gun line terminal cold source
|
Product Name
|
Quantity
|
Parameters
|
Note
|
|
Gear pump
|
1
|
150W gear pump (maximum flow rate 0.1 liters/second, maximum pressure 13 Bar), universal for water and oil.
|
DC 24V PWM speed control, FG signal feedback
|
|
Composite PU tube
|
N/A
|
Composite D6.5 inner diameter PU hose (single pipe for industrial use with burst pressure above 100KG, working temperature range -40°C to +100°C)
|
The pipeline can withstand various oil-based working media
|
|
Sensor
|
2
|
1. Integrated temperature and pressure sensor (PT1000 temperature sensor + 1MPa pressure transducer).
2. Temperature sensor (PT1000 temperature sensor)
|
4-20ma
|
|
2.5KW heat exchanger + fan assembly
|
2
|
1. Heat exchanger: 4-loop plate-fin type heat exchanger with a thickness of 30mm (total thickness of the liquid pipe is 3.0mm, and the height of the air fin wave is 6.5mm)
2. Fan assembly: 2 PCS brushless DC fans (single fan is 172*51 in thickness)
|
The theoretical cooling power of the single heat exchanger is 5KW
|
|
Liquid storage tank
|
1
|
PP material injection molding + hot plate welding process (with built-in liquid level sensor and an additional 1.2Bar water tank-specific expansion cap), equipped with liquid level alarm sensor
|
The maximum capacity of the water bottle is 0.8 liters and it can withstand a pressure of 6Bar (less than 10 minutes)
|
