This product is widely used in industrial and commercial energy storage cabinets, outdoor electrical cabinets and other places that require heat dissipation;
Multiple automatic protections and comprehensive fault self-diagnosis;
Exquisite craftsmanship and high-quality international brand components ensure the product is more stable and reliable;
R410A environmentally friendly refrigerant;
Standard RS485 interface for remote measurement, remote signaling, and remote adjustment;
LED digital display, on-site parameters can be set;
Heating function is standard;
Dry contact alarm output, with options for normally open or normally closed;
|

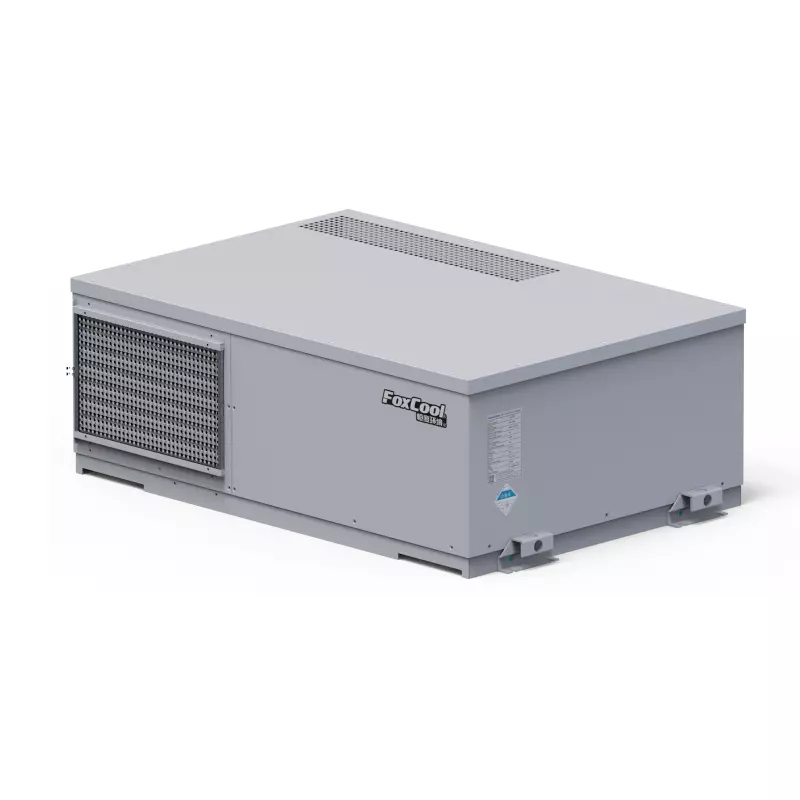

型号/Model
|
HDC030AS
（外循环前进风后出风/Rear air outlet)
|
HDC030AS
（外循环前进风顶出风/Upper air outlet)
|
HDC0050AS
（外循环前进风顶出风/Upper air outlet)
|
|
电源/Power Supply
|
220VAC±15% 50Hz/60Hz
|
220VAC±15% 50Hz/60Hz
|
220VAC±15% 50Hz/60Hz
|
|
制冷量/Cooling Capacity
|
3000W@L25/L35
|
3000W@L25/L35
|
5000W@L25/L35
|
|
功耗/Power Consumption
|
1700W@L25/L35
|
1600W@L25/L35
|
2300W@L25/L35
|
|
安装方式/Mounting Method 外形尺寸/Dimensions (mm,H*W*D)
|
顶装 /Top Mounting
260x945x655
|
顶装 /Top Mounting
340x945x655
|
顶装 /Top Mounting
340x1100x1100
|
|
IP等级/IP Grade
|
IP55（有遮盖）
|
IP55
|
IP55
|
|
制冷剂/Refrigerant
|
R410A
|
R410A
|
R410A
|
|
净重/Net Weight
|
68kg
|
72kg
|
80kg
|
|
表面处理/Surface Treatment
|
RAL7035
|
RAL7035
|
RAL7035
|
