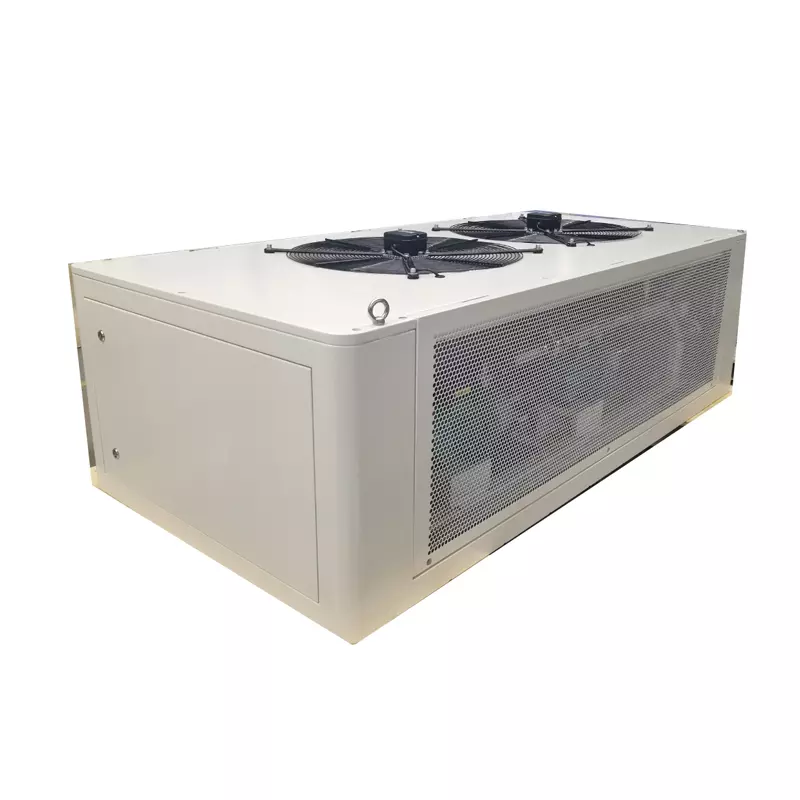

Product Description
Equipped with a large-capacity expansion tank, it has functions of pressure maintenance and small-volume fluid replenishment;
·Integrated design, saving on on-site installation and commissioning costs;
·All-fan and all-pump variable frequency design, highly efficient and energy-saving;
·Wide voltage adaptability, allowing voltage fluctuations of ±20%;
·Optional configuration of Modbus RTU and TCP communication protocols;
·Has power-on self-starting function, and provides multiple alarm and protection functions;
·Double-pump design, high reliability;
·Can operate continuously for 24 hours, with a design service life of over 10 years;
·Operating temperature range: -30℃ to 55℃.
|
Project
|
Unit
|
GCS0500D
|
GCS0360D
|
|
Input power supply
|
V/Hz
|
400V/50Hz
|
400V/50Hz
|
|
Heat dissipation @ ambient temperature 50°C
|
kW
|
50
|
36
|
|
Liquid supply flow rate
|
L/min
|
200
|
120
|
|
Input power @ ambient temperature 50°C
|
kW
|
3.1
|
2.7
|
|
Maximum working current
|
A
|
6
|
5
|
|
Communication method
|
/
|
ModbusRTU/TCP
|
ModbusRTU/TCP
|
|
Liquid supply pressure
|
kPa
|
80
|
80
|
|
Dimensions (width * depth * height)
|
mm
|
2300*1000*750
|
2000*1000*600
|
|
Installation method
|
/
|
Top installation
|
Top installation
|
|
Noise level (@ 1.7m height, 1.5m distance)
|
dB(A)
|
≤70（@ambient temperature≤40℃）
|
≤70（@ambient temperature≤40℃）
|
|
≤80（@ambient temperature＞40℃，＜50℃）
|
≤80（@ambient temperature＞40℃，＜50℃）
|
|
Waterproof and dustproof rating:
|
/
|
IPX5
|
IPX5
|
|
Coolant
|
/
|
50% ethylene glycol aqueous solution
|
50% ethylene glycol aqueous solution
|
|
Life expectancy
|
Years
|
>10
|
>10
|
|
Surface treatment
|
/
|
Electrostatic spraying（RAL7035）
|
Electrostatic spraying（RAL9003）
|
