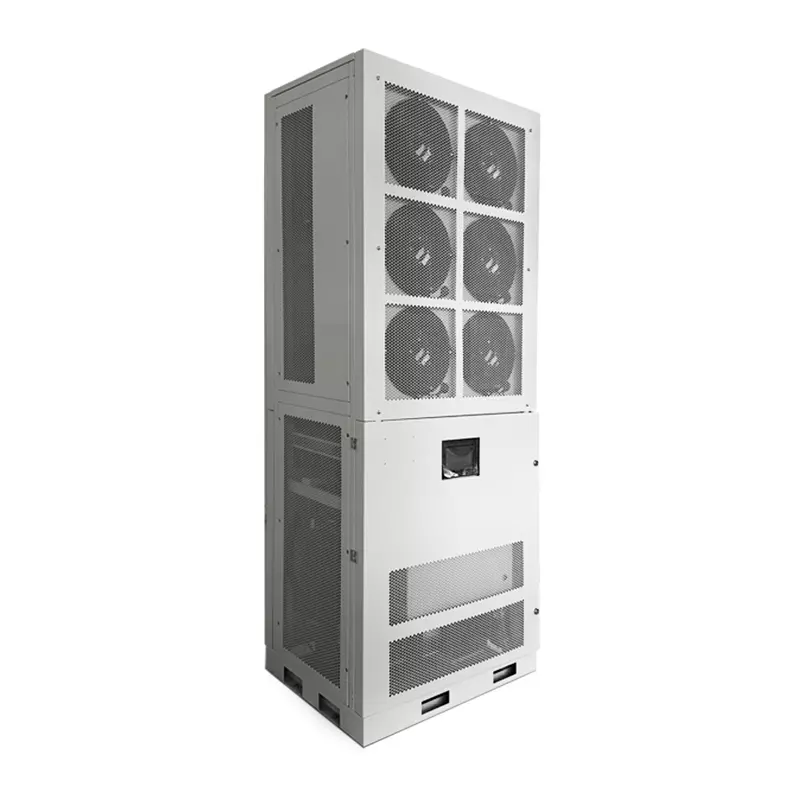

Product Description
Integrated design, reducing on-site installation and commissioning costs;
· Full variable frequency design, highly efficient and energy-saving;
· Wide voltage adaptability, allowing voltage fluctuations of ±20%;
· Standard RS485 communication interface, optional CAN communication;
· Has power-on self-starting function, and provides multiple alarm and protection functions;
· Small size, compact structure, protection grade IPX5;
· PTC heating, meeting the heating requirements of equipment in low-temperature scenarios;
· Can operate continuously for 24 hours, with a design service life of over 10 years;
· Operating temperature range: -30℃ to 55℃.
|
型号/Model
|
LCS0150L
|
LCS0200L
|
LCS0300L
|
LCS0400L
|
LCS0450L
|
LCS0500L
|
| Cooling Capacity |
KW
|
15
|
20
|
30
|
40
|
45
|
50
|
|
Power consumption（35℃）
|
kW
|
5.77
|
7.69
|
11.54
|
15.09
|
17.31
|
20
|
|
EER (35°C)
|
|
2.6
|
2.6
|
2.6
|
2.65
|
2.6
|
2.5
|
|
Power consumption（45℃）
|
kW
|
7.14
|
9.09
|
13.64
|
18.18
|
22.5
|
26.32
|
|
EER (45°C)
|
|
2.1
|
2.2
|
2.2
|
2.2
|
2
|
1.9
|
|
Rated Outlet Water Temperature
|
℃
|
18
|
18
|
18
|
18
|
20
|
20
|
|
Electric Heater
|
kW
|
12
|
12
|
15
|
15
|
15
|
15
|
|
Connection Pipe Diameter
|
|
DN50
|
DN50
|
DN50
|
DN50
|
DN50
|
DN50
|
|
Flow Rate
|
L/min
|
200
|
200
|
240
|
360
|
360
|
360
|
|
Pump Head
|
kPa
|
150
|
150
|
150
|
150
|
150
|
150
|
|
Refrigerant
|
|
R410A
|
R410A
|
R410A
|
R410A
|
R410A
|
R410A
|
|
Dimensions
|
Width
|
mm
|
980
|
980
|
980
|
980
|
980
|
980
|
|
Depth
|
mm
|
630
|
630
|
630
|
630
|
630
|
630
|
|
Height
|
mm
|
2200
|
2200
|
2400
|
2400
|
2400
|
2400
|
|
Unit Weight
|
kg
|
240
|
275
|
290
|
300
|
300
|
310
|
|
Power Supply
|
V/Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
|
Operating Temperature Range
|
℃
|
-30～55
|
-30～55
|
-30～55
|
-30～55
|
-30～55
|
-30～55
|
|
External Circulation Air Discharge Mode / Air Outlet Type (External Circulation)
|
Front inlet, front outlet
|
Front inlet, front outlet
|
Front inlet, front outlet
|
Front inlet, front outlet
|
Front inlet, front outlet
|
Front inlet, front outlet
|
|
Installation Method
|
Floor-standing cabinet type
|
Floor-standing cabinet type
|
Floor-standing cabinet type
|
Floor-standing cabinet type
|
Floor-standing cabinet type
|
Floor-standing cabinet type
|
